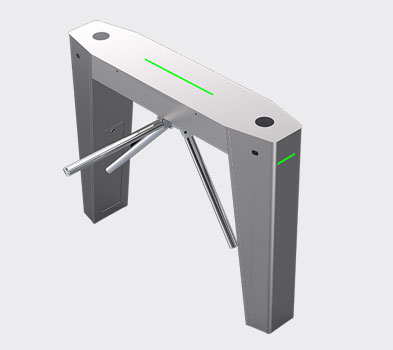

Tripod Turnstile

Tripod Turnstile Overview

Tripod turnstile gates are designed for compact and cost-effective entrance solutions to any premises, usually used in high pedestrian traffic flow in both directions. The body is made from AISI 304 grade stainless steel which have double brushed surface treatment to make robust, rigid, dust proof, rust proof and rain proof barrier/gates. We have redesigned the barriers/gates with great importance to aesthetics and comfort which creates a seamless and elegant access point to blend into most indoor environment of any premises.

It can easily be integrated with any kind of Access Control system (i.e. RFID device, Fingerprint, Biometric device and Push button), Time Attendance system or Ticketing solutions. In case of emergency, the arm will open automatically with “DROP ARM” feature to allow free passage ensuring Fire Safety norms.

Thanks to its patented locking technology, it is impossible for anyone to become trapped in the event of power failure or attempted unauthorized access. The access through put from the barrier/gate is 30 persons/minute.

We have unidirectional, bidirectional, single lane, dual lane and customizable lanes to suit Customer requirements. They are purely suitable And are optimized for indoor/outdoor premises Like:- railway, bus station, factory, colleges, commercial building, corporate offices, library, stadium, game park, bank and etc.

It’s Mechanical design and durable steel construction ensures its operation in high-intensity & relatively harsh/poor environment to control the accessing safely and effectively.

To further strengthen the quality and reliability, our products comes with International Standards i.e: UL/CE/FCC/ROHS Certifications.

Product Range - Tripod Turnstile

Semi & Fully Automatic with Drop Arm Feature

Tripod turnstile gates are designed for compact & cost-effective entrance solutions to any premises, usually used in high pedestrian traffic flow in both directions.
Vertical Solutions

Value Added Solutions for Tripod Turnstiles

For over 20 yrs of experience, provides Turnstile/Barrier with wide range of add-on solutions to cater multiple Industry-specific requirements for Safe and Secure entrances.

ESD System

It tests Electrostatic current on wrist band/footwear while entering the premises


Random Frisking

A module which stops to frisk persons randomly while entry/exit


People Counting

It help us to know how many persons are in the premises at the moment

Technical Specifications

Our Technical Specification are as per the Industry standard Includes dimensions, functionality, material, interface, working, protection, approvals etc.

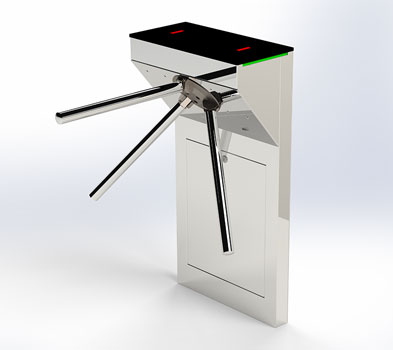

Below you will find the detailed technical specification of Tripod Turnstile “DROP ARM TYPE”.


  • Frame Work: 316/304 Stainless Steel
  • Arm Material : 316/304 Stainless Steel
  • Passage Width: < 550mm

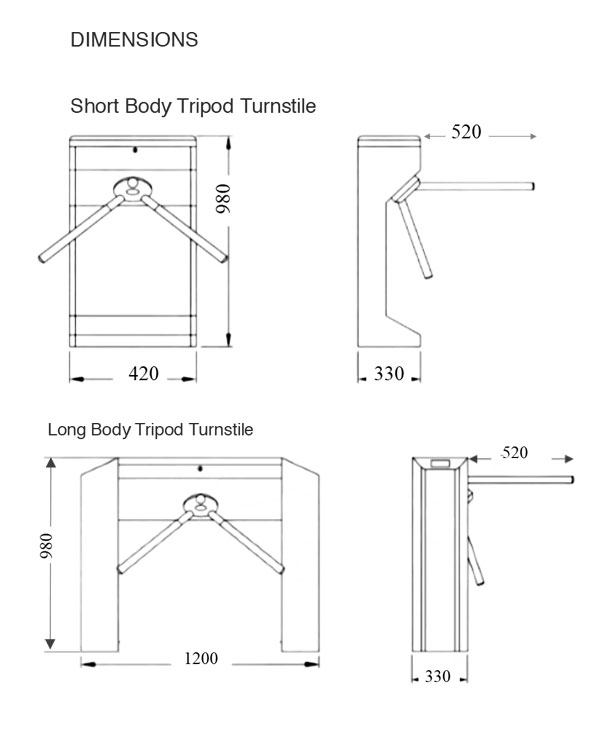

  • Dimensions: 420mm x 330mm x 980mm
  • Pass Speed: 30 persons/minute
  • Passing Direction: Unidirectional/Bidirectional
  • Lane LED Indicator: Yes
  • Working Environment: IP 43 protection conformity
  • Approvals: UL/CE/FCC/ROHS
  • Emergency: Opening/Closing of ARM on Power OFF
  • Operation Temperature: -15°C to -60°C
  • Power Supply: AC 220V, 50/60HZ

Applications

Flap Barrier offers Automatic Flap Barriers System Speed Gates, Tripod Turnstiles Barrier Gates, Swing & High Speed Barriers Gates, Half Height Turnstile Barriers, Automated P Gate, Revolving & Security Doors Gates in Gurgaon (Gurugram) Delhi Noida
